Product Description

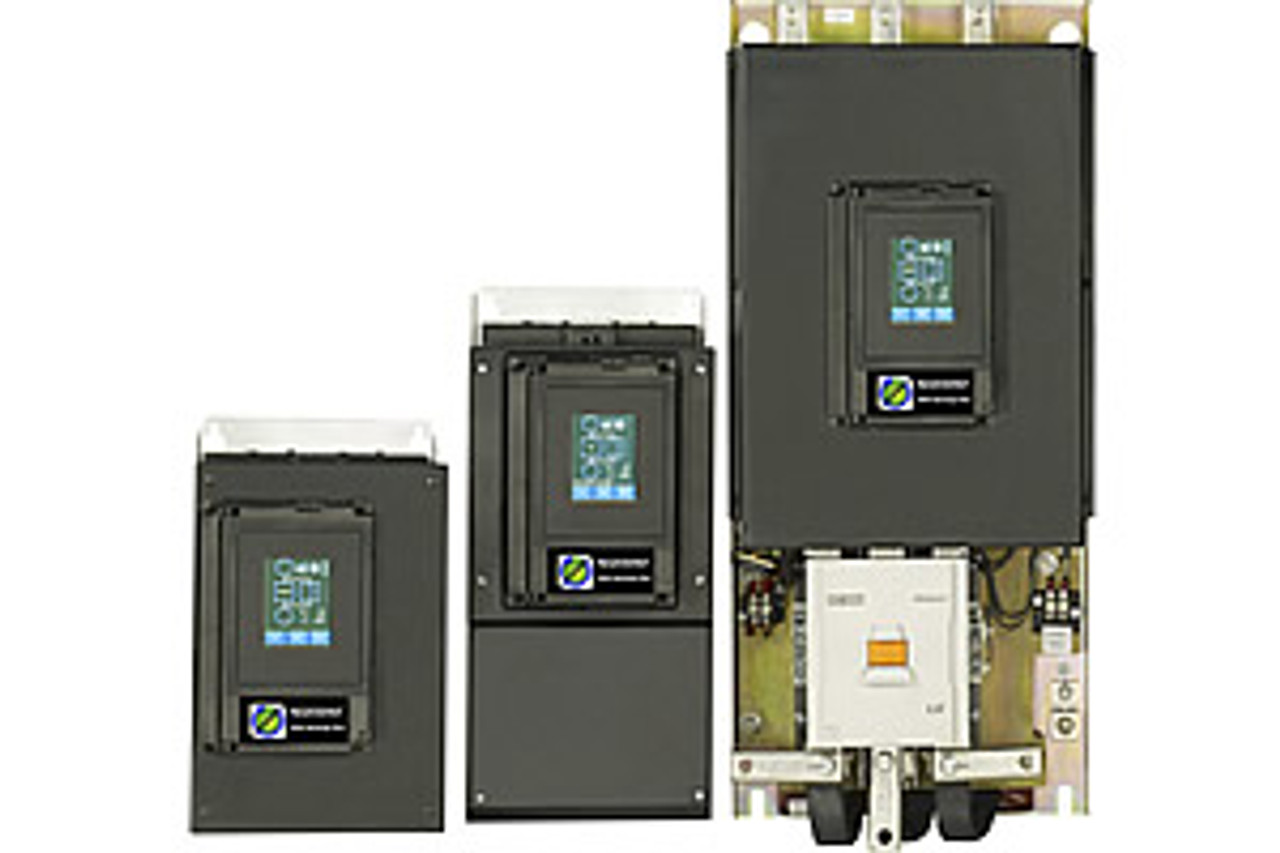

VMX-SGY-A-210
210 AMP 600V 120 CCT 3PH OPEN
250 VA CONTROL TRANSFORMER REQUIRED - 120 VAC
Downloads:
VMX-Synergy Plus Quick Start Guide
VMX-Synergy Plus Modbus Parameter Tables
VMX-Synergy Plus Communication Modules
VMX-Synergy Plus MLink Software for Windows 10 and up [ZIP]
Specification:
AC Supply Voltage: 200 - 690 Vac
HP Ratings: 5 to 1200 HP available
Amp Ratings: 9 to 1250 Amps available
Overload: 500% for 60 sec
Enclosure: Open Chassis / Panel Mount
Power Components
6 SCRs in inverse parallel pairs for full phase angle soft start control
Line Voltage Range
200 to 690 VAC, 3 phase +10% -15% on all units, 50/60Hz
Current Ratings
9 - 1250A depending on unit selection
Control Voltage
User supplied 110/230VAC +10% -15% tolerance, 60Hz
Optional 24VDC
Bypass
Standard on all units
Enclosure
Open Chassis / Panel Mount
Overload
Full motor overload with Memory
Programmable Trip Class 10, 20 or 30.
Overload Capacity 500% for 60sec.
Short-Circuit Rating
65kA with breaker (VMX-SGY-A-62 and above)
Energy Savings
ERS - intelligent Energy Recovery System as standard
Input/Outputs
4 x programmable digital inputs
5 x programmable output relays
Analog input and output
USB for data logging and parameter setting/saving
Thermistor
Setup
Full Automatic Setup
Data Logging
Life Time Application Event Logging Diagnostics
Comprehensive data logging
Touch Screen
3.5” Full Color Touch Screen
Languages
Select from 15 Languages
Communication
Standard - Modbus RTU
Optional - Modbus TCP
Optional - Profibus DP
Optional - Ethernet/IP
Information:
Best in Class ANSI Rated Soft Starter
Heavy-Duty ANSI model needs no application for sizing. Use the internal contactor to start the motor in an emergency. For heavy duty or high cycling, the ANSI product is the best choice for demanding applications. Tested to 65kA with breakers.
Easy of Use
The display will show all messages in full and 15 different global languages. The use of graphic/schematic images and active mimic diagrams will facilitate complete understanding. Detailed logging will aid setup and onboard USB allows configurations to be upload/downloaded and emailed.
Auto Configuration
The automatic functionality has been expanded so that more features can be configured without referring to parameter lists.
Automatic Load Tuning
The VMX-Synergy Plus™ will ‘tune’ itself to the load.
Touch Screen
The VMX-Synergy Plus™ comes standard with a color touch screen on all sizes.
Compact packaging has become critical in more and more electrical installations. The VMX-Synergy Plus™ Series meets this need without compromising features and ratings. By using a highly engineered packaging design and the latest generation microprocessor, all the control and protection features you need are in the VMX-Synergy Plus™ Series. Narrow and shallow dimensions are perfect for integrating the VMX-Synergy Plus™ Series into motor control centers (MCCs), pump control panels, and retrofit starter enclosures.
Integral Bypass Contactors are standard on all sizes and provide maximum efficiency of panel space while maintaining the Motortronics reputation for being able to soft start most any load. The VMX-Synergy Plus™ Series is the only fully integrated, compact, world-class design offering uncompromised power and control capabilities.
