S080804

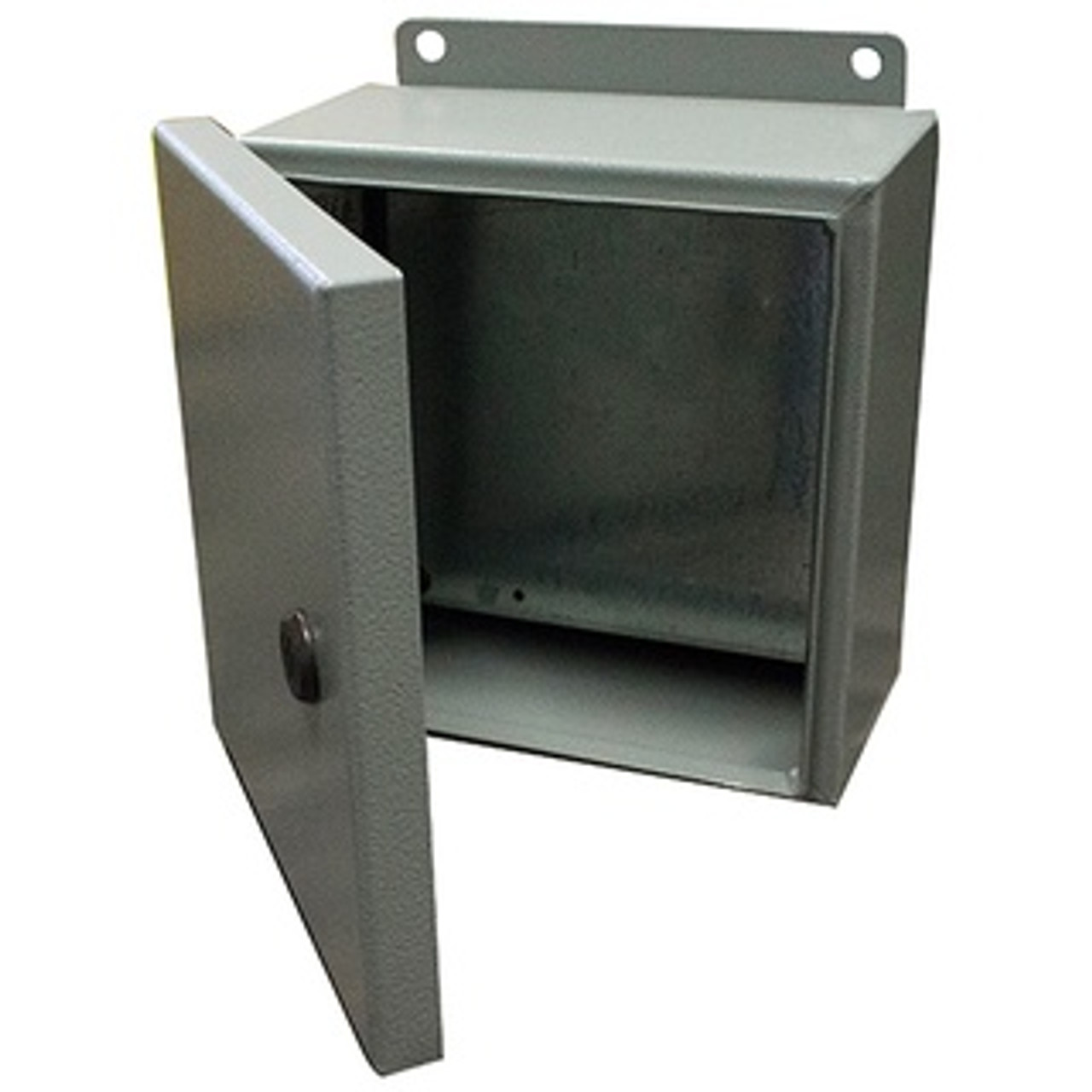

BEL Brand S Series Electrical Component Enclosures

Introducing the BEL S Series Electrical Component Enclosures, designed to provide top-notch protection and accessibility for your electrical, pneumatic, or hydraulic instruments. These enclosures are perfect for both indoor and outdoor applications, ensuring your valuable components remain secure and functional in any environment.

Features and Specifications:

• EEMAC / NEMA 4-12 / IP 65 Ratings: Offers protection against dust, dirt, and water, making them ideal for various industrial applications.
• Robust Construction: Made from 16-gauge steel with continuously welded and ground smooth seams. Some models are available in Aluminum (S..AL Series) and Stainless Steel (S..SS Series) for additional durability and corrosion resistance.
• Seamless Gaskets: Seamless poured in place gaskets (excluding captive screw models which use neoprene gaskets), ensuring a tight seal.
• Slip Hinges: Enable easy cover removal for hassle-free access and mounting.
• Grounding Options: Grounding screw on mounting panel and grounding stud welded on the inner cover surface.
• Latch System: 1/4 turn latch made of zamack.
• Included Galvanized Steel Panel: 14-gauge galvanized steel panel with natural finish included with the enclosure.
• Additional Accessories: Option for cutouts, louvers, additional knockouts, and tamper-proof screws.
• Compliance: CSA certified (150359), UL listed (E109310), and CE compliant.
• Variety of Sizes: Available in a wide range of sizes to accommodate different components and applications.
• Finish: ANSI/ASA61 grey polyester textured powder coating inside and out for added protection.

Applications:

The BEL S Series Enclosures are ideally suited for housing electrical controls, instruments, and components in industrial settings, especially where dirt, dust, oil, water, or other environmental factors may be present.

Part of an Extensive Product Line

In addition to the standard models, the S Series also offers the ASP Series spare panels made from unpainted galvanized steel and equipped with four mounting holes.
