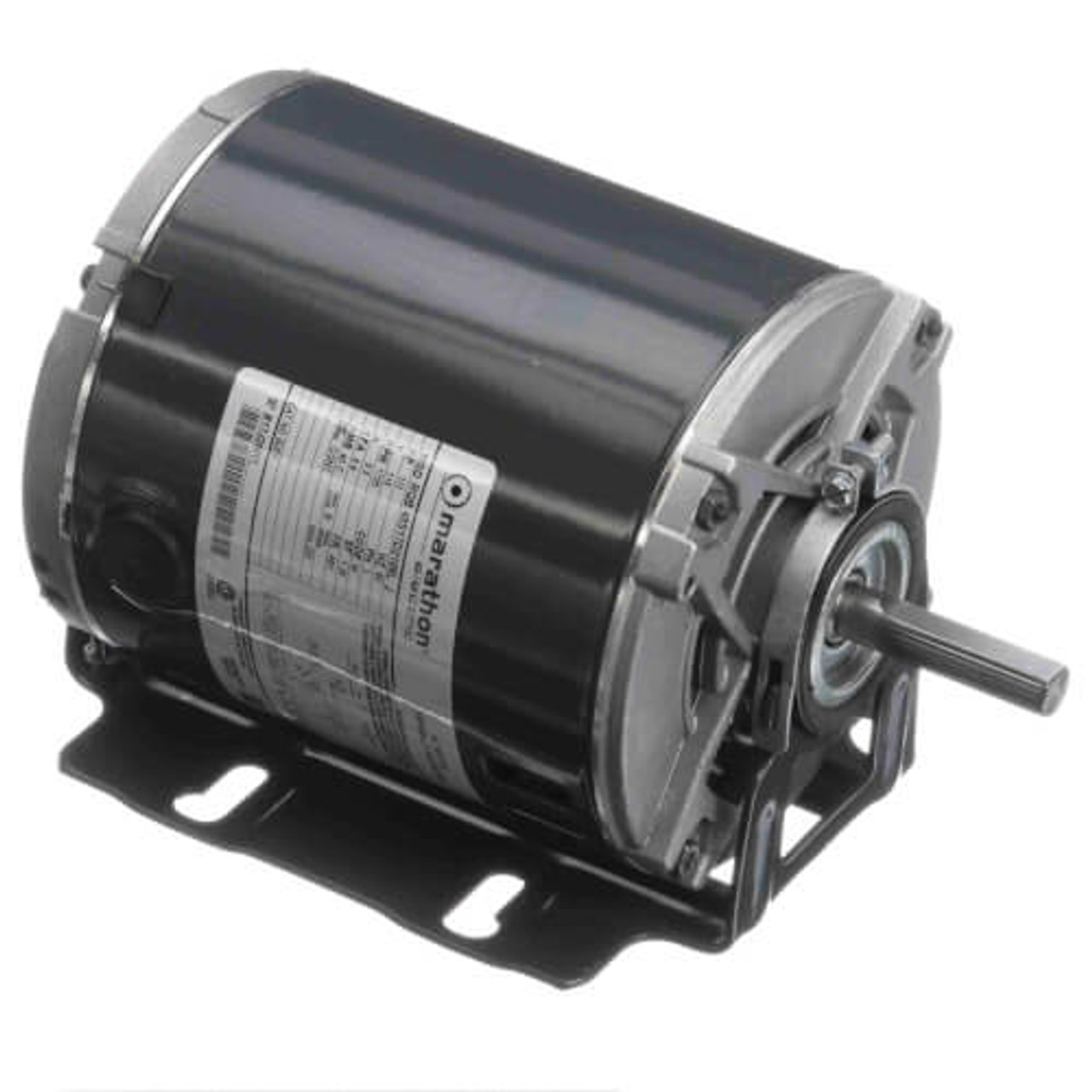

Product Description
Download datapackage B207| Output HP | 0.33 Hp |
| Output KW | 0.25 kW |
| Frequency | 60 Hz |
| Voltage | 115 V |
| Current | 5.5 A |
| Speed | 1725 rpm |
| Service Factor | 1.35 |
| Phase | 1 |
| Efficiency | 64 % |
| Power Factor | 65.7 |
| Duty | Continuous |
| Insulation Class | B |
| Design Code | NO DESIGN CODE |
| KVA Code | M |
| Frame | 48Y |
| Enclosure | Drip Proof |
| Thermal Protection | Automatic |
| Ambient Temperature | 40 °C |
| Drive End Bearing Size | 6203 |
| Opp Drive End Bearing Size | 6203 |
| Technical Specifications | |
| Electrical Type | Split Phase |
| Starting Method | Across The Line |
| Poles | 4 |
| Rotation | Selective Counterclockwise |
| Mounting | Resilient Base |
| Motor Orientation | Horizontal |
| Drive End Bearing | Ball |
| Opp Drive End Bearing | Ball |
| Frame Material | Rolled Steel |
| Shaft Type | Single Special Extension |
| Overall Length | 9.62 in |
| Shaft Diameter | 0.500 in |
Warranty Information
1 YearProduct Videos
Custom Field
Voltage 115
Horsepower 0.33 HP
Phase 1
Enclosure Type ODP
Frequency (Hz) 60
Efficiency Standard
RPM 1800
Frame 48YZ
Additional Attributes Belted Fan
