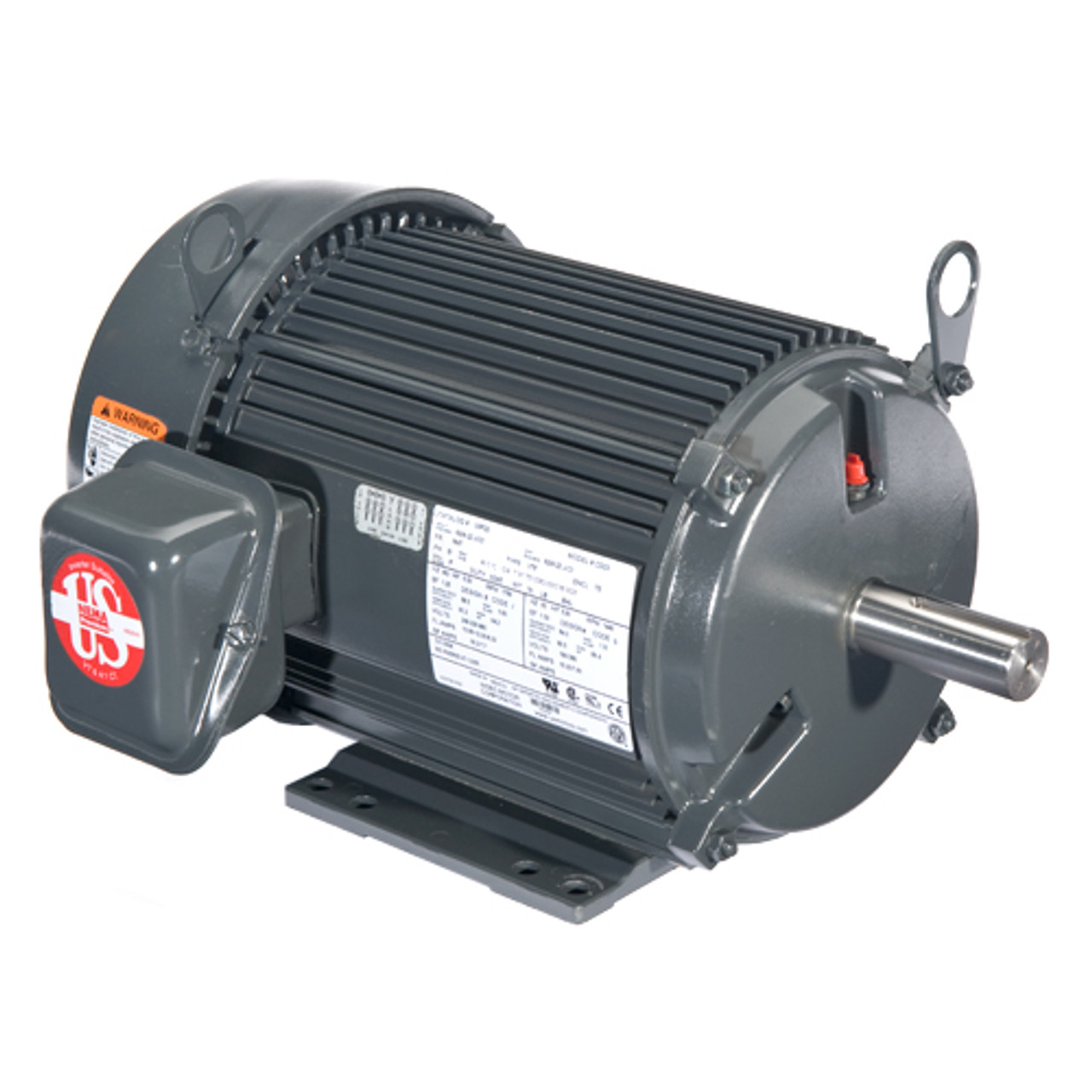

Product Description
Download Datapackage - Catalog U7P1GF - Model FU15| Model_Number: | FU15 |
| PRODUCT NAME: | 7.5 HP - TEFC - 3515 |
| PHASETYPE: | 3_PHASE |
| MOTOR ENCLOSURE: | TEFC |
| HORSEPOWER: | 7.5 |
| KILOWATTS: | 5.6 |
| POLES: | 2 |
| NUMBER SPEEDS: | 1 |
| RPM: | 3515 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 575 |
| VOLTS : | 575 |
| FRME : | 184 |
| SHAFT CODE: | T |
| MOUNTING: | HORZ-FOOTED |
| ASSEMBLY POSITION: | F1 |
| MOTOR TYPE: | UTE |
| OPPOSITE END BEARING: | 6205-2Z-J/C3 |
| SHAFT END BEARING: | 6206-2Z-J/C3 |
| AMBIENT: | 40 |
| ROTATION: | DUAL |
| SERVICE FACTOR: | 1.25 |
| STARTCAPMFD: | N\A |
| SHIPPING WEIGHT: | 70 |
| BREAKDOWN TORQUE: | 317 |
| BREAKDOWN TORQUE UOM: | PERCENT OF FLT |
| LOCKED ROTOR TORQUE: | 261 |
| LOCKED ROTOR TORQUE UOM: | PERCENT OF FLT |
| INSULATION CLASS: | F |
| KVA CODE LETTER: | J |
| LOCKED ROTOR AMPS: | 57 |
| NEMA NOMINAL EFFICIENCY: | 89.5 |
| FULL LOAD AMPS PRIMARY: | 7.1 |
| SERVICE FACTOR AMPS PRIMARY: | 9 |
Product Videos
Custom Field
Voltage 575
Horsepower 7.5 HP
Phase 3
Enclosure Type TEFC
Frequency (Hz) 60
Efficiency Premium
RPM 3600
Frame 184T
Additional Attributes Unimount
