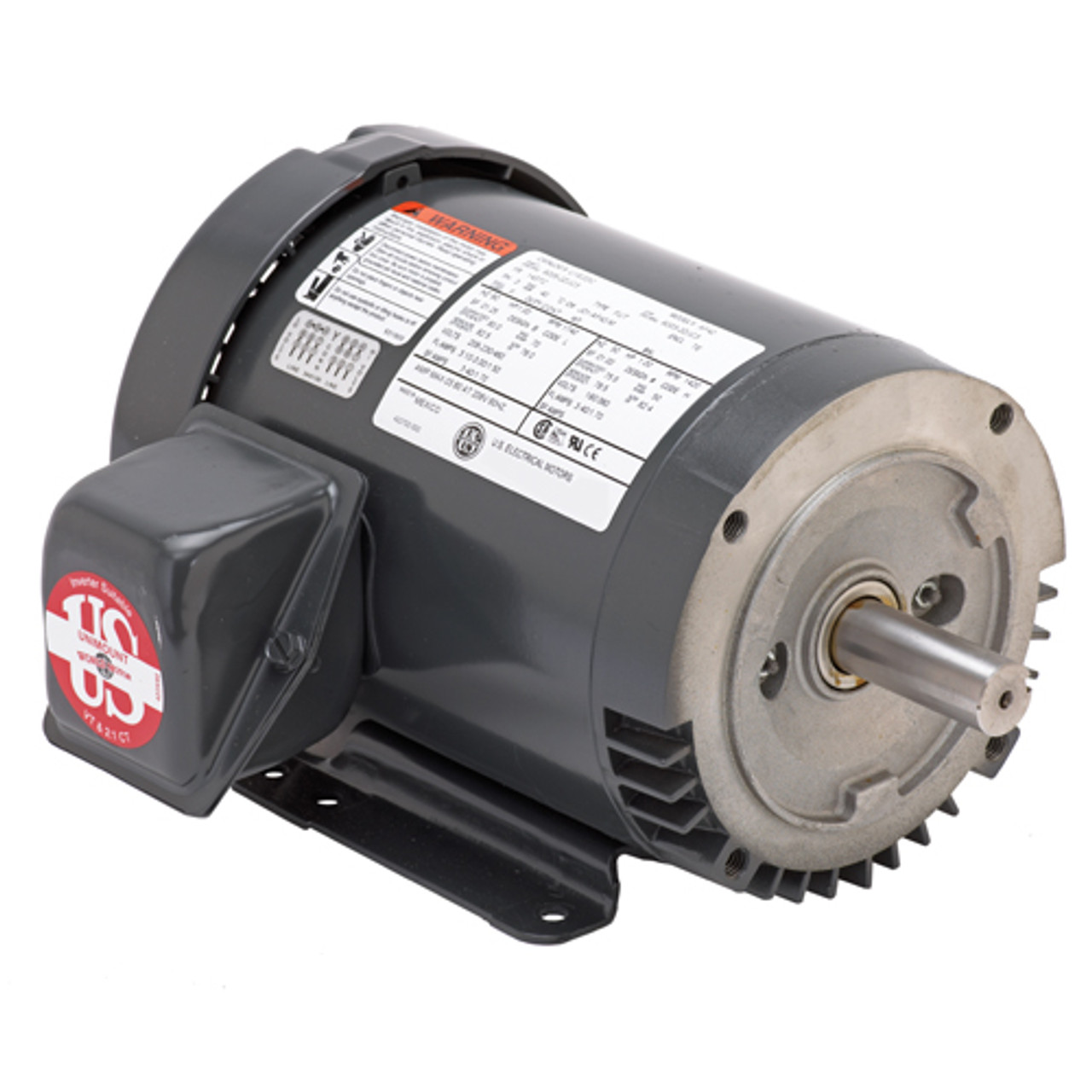

Product Description
0.50 HP 1800 230/460
Download Datapackage - Catalog U12S2AC - Model F008
| Model Number: | F008 |
| PRODUCT NAME: | .5 HP - TEFC - 1745 |
| PHASETYPE: | 3 PHASE |
| MOTOR ENCLOSURE: | TEFC |
| HORSEPOWER: | .5 |
| KILOWATTS: | 0.4 |
| POLES: | 4 |
| NUMBER SPEEDS: | 1 |
| RPM: | 1745 |
| RPM 2: | 1745 |
| RPM 3: | 1730 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 208-230/460 |
| VOLTS : | 460 |
| VOLTS 2: | 230 |
| VOLTS 3: | 208 |
| FRME : | 56 |
| SHAFT CODE: | C |
| MOUNTING: | HORZ-FOOTED |
| ASSEMBLY POSITION: | F1 |
| MOTOR TYPE: | UT |
| OPPOSITE END BEARING: | 6203-2Z-J/C3 |
| SHAFT END BEARING: | 6203-2Z-J/C3 |
| AMBIENT: | 40 |
| ROTATION: | DUAL |
| SERVICE FACTOR: | 1.25 |
| STARTCAPMFD: | N\A |
| SHIPPING WEIGHT: | 19 |
| BREAKDOWN TORQUE: | 356 |
| BREAKDOWN TORQUE UOM: | PERCENT OF FLT |
| LOCKED ROTOR TORQUE: | 245 |
| LOCKED ROTOR TORQUE UOM: | PERCENT OF FLT |
| INSULATION CLASS: | F |
| KVA CODE LETTER: | K |
| LOCKED ROTOR AMPS: | 5.2 |
| NEMA NOMINAL EFFICIENCY: | 74 |
| FULL LOAD AMPS PRIMARY: | 1.8-1.8/0.9 |
| SERVICE FACTOR AMPS PRIMARY: | 0-2/1 |
US Electric by Nidec.
USEM motor for general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment.
Product Videos
Custom Field
Voltage 230/460
Horsepower 0.5 HP
Phase 3
Enclosure Type TEFC
Frequency (Hz) 60
Efficiency Premium
RPM 1800
Frame 56C
Additional Attributes None
