7.2 / 14.4 kV Dual Primary | 347 V Secondary | 167 KVA | ONAN Transformer
Is this transformer in stock?
The stock levels shown on a products page are representative of the stock at Beaver Electrical's Burnaby location. In-stock transformers can be shipped same-day.
If you are in need of a replacment transformer due to an emergency breakdown or power outage, please call us 24/7 at 800-663-6505.
In-Stock ABB Transformers: Optimal Solutions for Diverse Power Needs
Versatile Applications: Our range of ABB transformers is ideal for a variety of applications—from residential overhead distribution to light commercial and industrial uses. Whether you require a single phase load supply or a robust three-phase system, our transformers can be easily mounted on wooden, concrete, or clustered poles, ensuring flexibility and efficiency for all power distribution needs.
Compliance and Standards: Built to meet stringent industry standards, our in-stock transformers comply with CAN CSA C2.1-06 and CAN CSA C2.2-06, with adaptations available to meet specific customer specifications. Additionally, they conform to international standards such as IEEE C57.12.20 and IEC, depending on your requirements.
Features for Performance:
- Core and Coil: Designed to minimize Total Ownership Costs through increased efficiency and reduced noise levels.
- Innovative Winding Configurations: Low-high-low windings that enhance short circuit strength, operational efficiency, and thermal resilience.
- Dual Voltage: Engineered to handle multiple voltage requirements, ensuring versatility and reducing inventory needs for utilities.
- Safety and Durability: Includes an automatic self-resealing pressure relief valve and a durable paint system that surpasses IEEE C57.12.28 standards for salt spray.
Dual Voltage Transformers and Taps: Our dual voltage transformers offer the flexibility needed to adapt to changing voltage requirements without the need for frequent replacements, making them a cost-effective choice. Recommended configurations limit the high voltage (HV) spread to ensure reliability and performance longevity.
General Specifications:
- Temperature Rise: Standard 65°C
- Cooling Type: ONAN for optimal heat dissipation
- Frequencies Supported: 60 Hz
- Insulation Class: Up to 25kV (150kV BIL)
- Taps: 4 x 2.5% HV
What is the lead time for a custom transformer?
Lead times on non stock or out of stock items are highly variable, but are often lengthy. Please contact our sales team with your requirements.
Downloads
Nameplate and dimension data on SLQ167P7.2X14.4-N8A
Brochure on all ABB single phase overhead distribution transformers

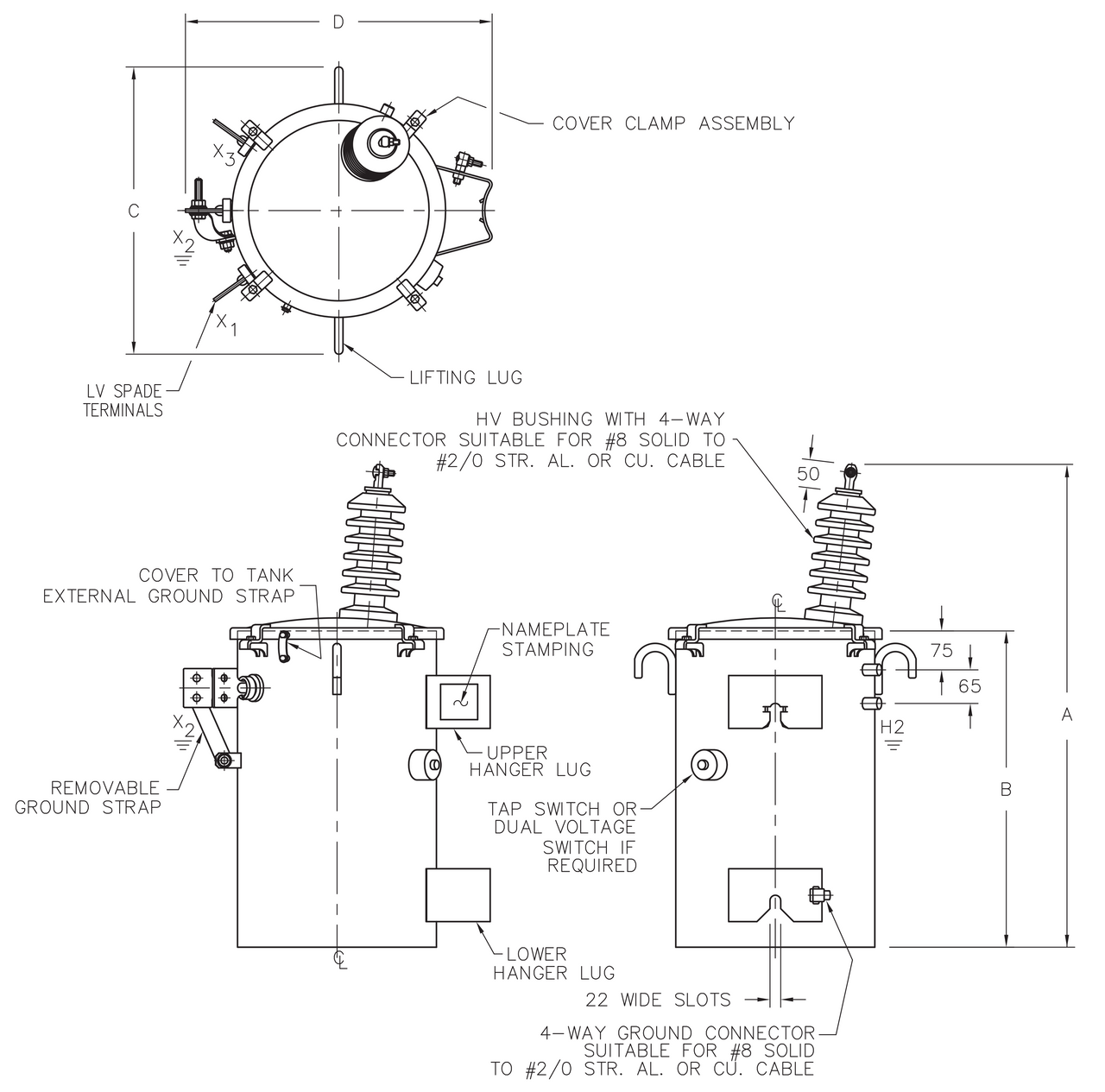

Typical Dimensions (mm) for Grain Oriented Electrical Design
KVA | A | B | C | D | Mass (kg) | Oil (litres) |
---|---|---|---|---|---|---|
10 | 885 | 560 | 500 | 525 | 100 | 22 |
25 | 935 | 610 | 560 | 590 | 160 | 30 |
50 | 1035 | 710 | 635 | 675 | 260 | 60 |
75 | 1035 | 710 | 745 | 840 | 375 | 90 |
100 | 1135 | 815 | 770 | 965 | 555 | 100 |
167 | 1335 | 1015 | 795 | 890 | 690 | 160 |
