90A 3P 600V
High performance economical contactors for commercial applications up to 90A
Sprecher + Schuh’s Definite Purpose contactors are ideal for commercial applications including air conditioning,
refrigeration, resistive heating and many other installations where a low cost, high performance contactor is needed. These devices offer flexibility and are designed to meet or exceed electrical and mechanical requirements as defined by definite purpose contactor standards.
Popular sizes for most applications

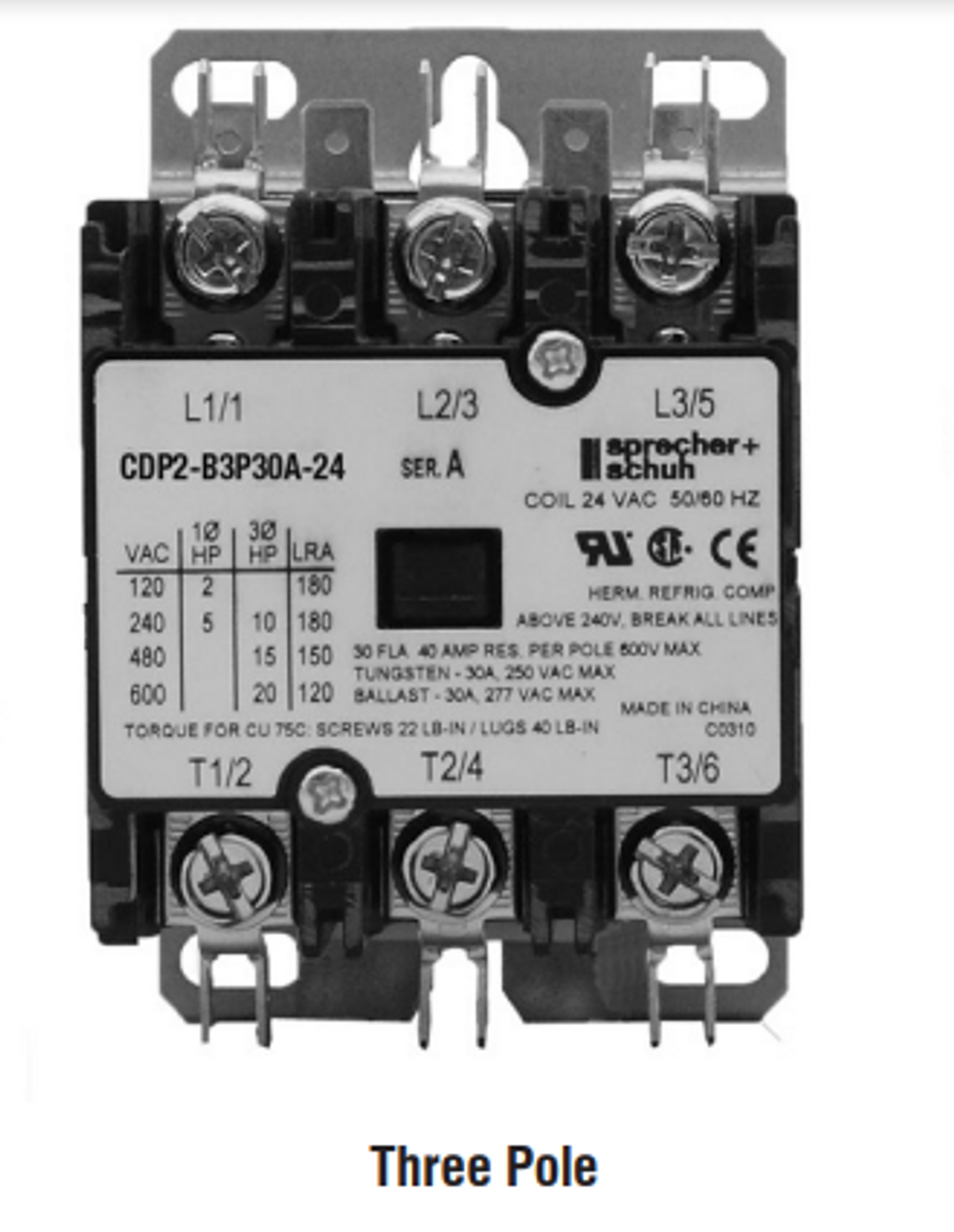

The CDP2 series consists of one, two, three and four pole contactors rated to 600V AC. Three pole devices range
up to 90A, while the one and two pole models are rated to 40A. Four pole contactors are also available ranging from 25A to 40A.
Flexibility and convenience make installation easy
CDP2 contactors are compact in size and offer three convenient methods of wire connection: quick connect terminals, screws or box lugs. Box lugs are standard on 40A and larger contactors.
Other models come standard with combination quick connect terminals and screws that accept hex, slotted or phillips screwdrivers.
- SPDT auxiliary contacts optional on 3 and 4 pole contactors (max of two auxiliaries per device)
- Optional covers for 1 and 2-pole contactors
- Mechanical interlock for 3-pole contactors
