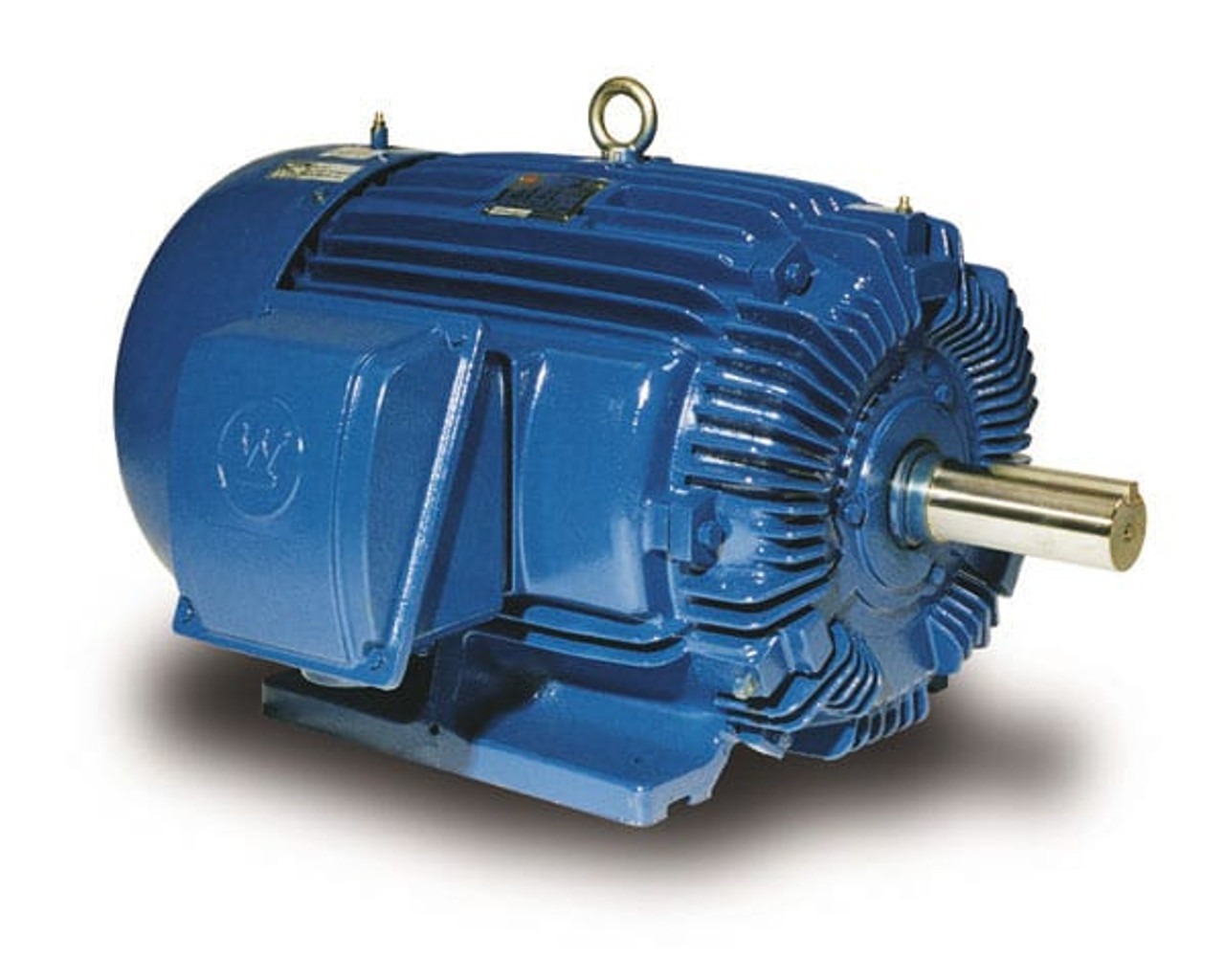

Product Description
030 HP 1800 460
IEEE 841 SEVERE DUTY - NEMA PREMIUM EFFICIENCY TEFC
NEMA Standard 3-Phase Motors
60Hz, 460V or 575V
NEMA Design B or C, Continuous Duty
Class F Insulation, 40°C Ambient, 1.15 S.F.
HPE™ Inverter Duty Wire
Download datapackage APH0304-841
| CATALOGUE # | APH0304-841 |
| HP | 30 |
| RPM | 1800 |
| VOLTS | 460 |
| FRAME | 286T |
| PHASE | 3 |
| HZ | 60 |
| ENCLOSURE | TEFC |
| F/L EFF. | 93.6 |
| APPROX. WEIGHT (LBS) | 517 |
| FULL LOAD CURRENTS (A) | |
| 460V | 34.3 |
| BEARINGS | |
| Drive End | 6311ZC3 |
| Non Drive End | 6310ZC3 |
Product Videos
Custom Field
Voltage 460
Horsepower 30 HP
Phase 3
Enclosure Type TEFC
Frequency (Hz) 60
Efficiency IEEE841
RPM 1800
Frame 286T
Additional Attributes None
